Ergo: The Future of AFM Control

Ergo is the new software interface included with all Asylum Research Cypher and Jupiter AFMs. A streamlined workflow enables quick setup and simple acquisition of consistent high-quality images. Ergo users will complete their measurements and confidently draw meaningful conclusions in record time.

Automated Multi-Site Wafer Imaging Now Available on Ergo

Upload your sites, hit “Start” and walk away. Ergo will not only scan each site automatically, but the Autopilot™ algorithm will optimize the scans for high quality and consistent results.

Intuitive, Easy to Use Nanoelectrical Workflow

Measure high-resolution, high-sensitivity electrical data with Scanning Capacitance Microscopy (SCM) and Conductive AFM (CAFM).

Auto AFM Calibration in Seconds

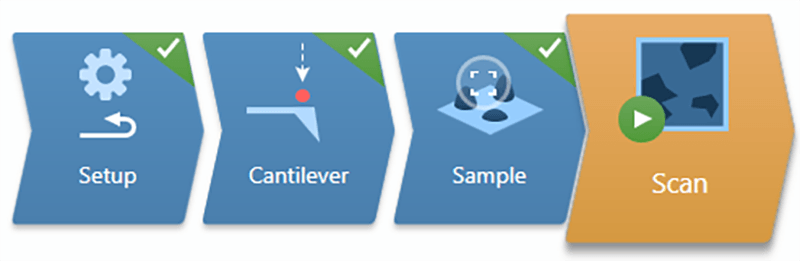

Ergo’s workflow guides you from loading a new probe to aligning the laser with a few clicks. In the background, Asylum’s proprietary GetReal™ technology automatically calibrates the cantilever each time to help ensure the most consistent results from day-to-day.

Rapid Generation of High-Quality Images That You Can Trust

The most common AFM measurement is the acquisition of topographical images in air. Ergo has embedded Asylum’s proprietary AUTOPILOT™ algorithm, which automatically calculates the optimal imaging settings and starts producing high quality data from the first scan line.

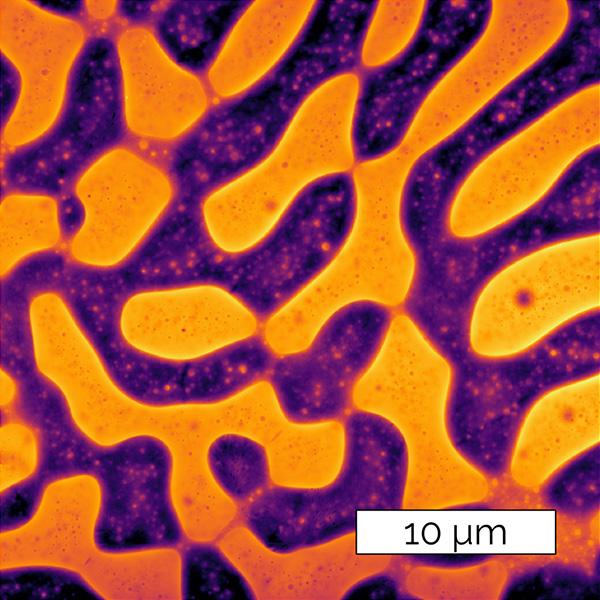

Polymer blend

AFM is a powerful tool for visualizing the microstrucuture of polymers.

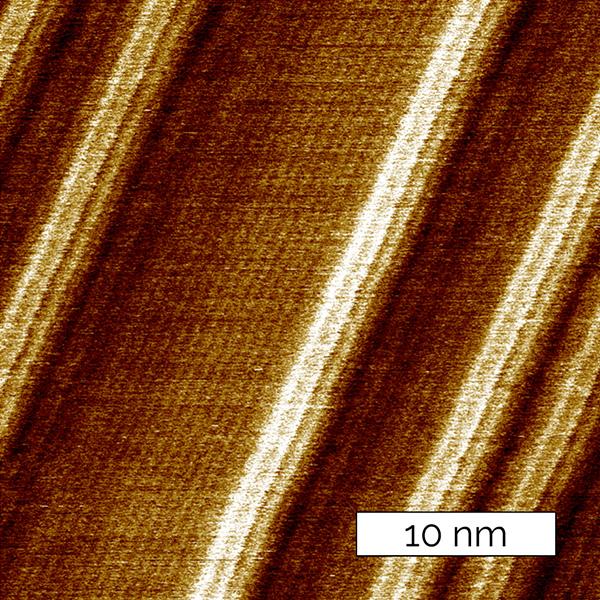

Ergo AFM software PTFE molecular resolution

PTFE membrane

Ergo easily achieves high resolution using AUTOPILOT, here resolving the individual PTFE molecule chains.

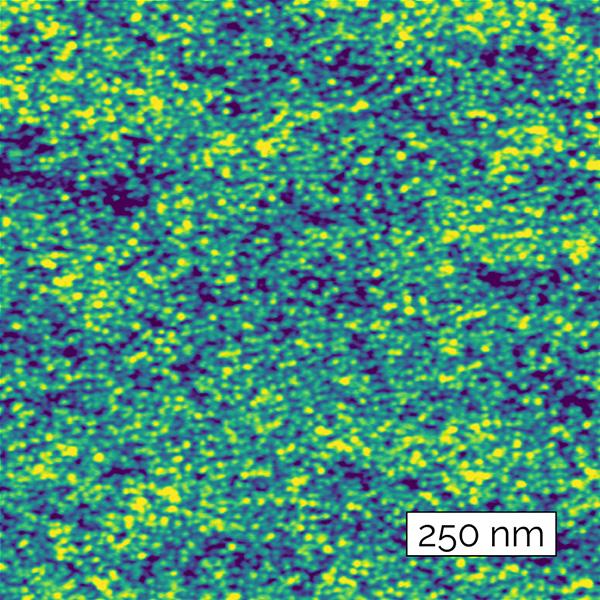

PMR disk drive media

Roughness and defects are key quality control metrics on disk drive media that affect data storage density.

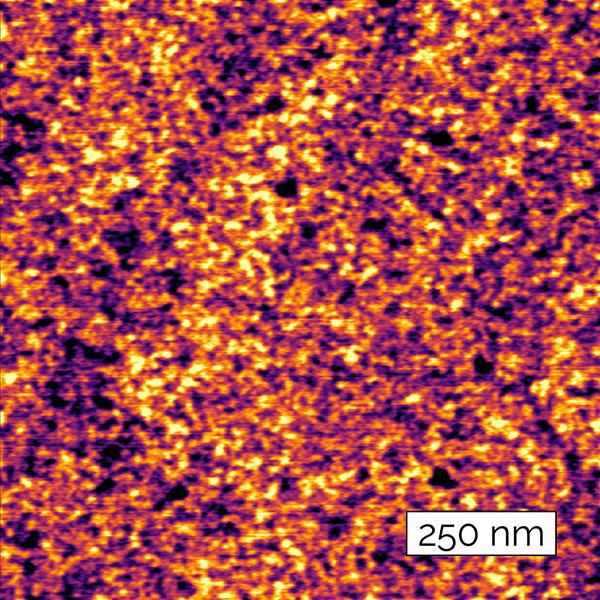

Silicon wafer

Substrate roughness is one of the most common AFM measurements. Ergo makes it simple and repeatable.

Minimal Training Required

Ergo shares a common core and workflow concept with the Oxford Instruments AZtec software for SEM and TEM analyzers. This tried and tested platform allows users to focus on results and not on the equipment.

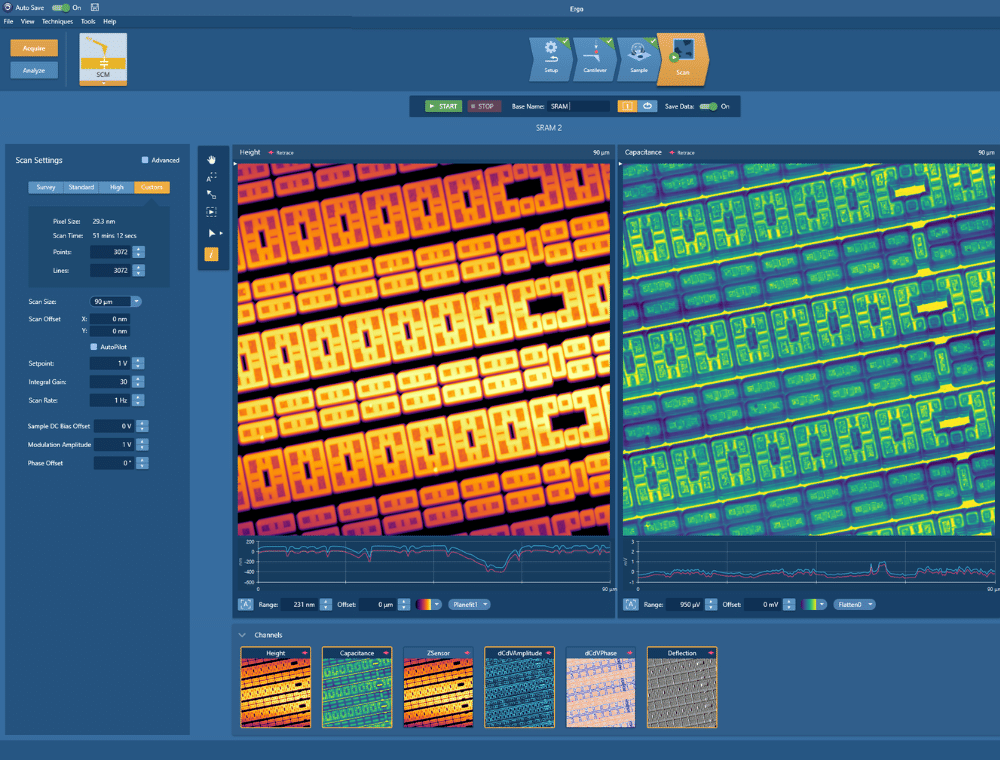

Ergo AFM software screenshot scan in action

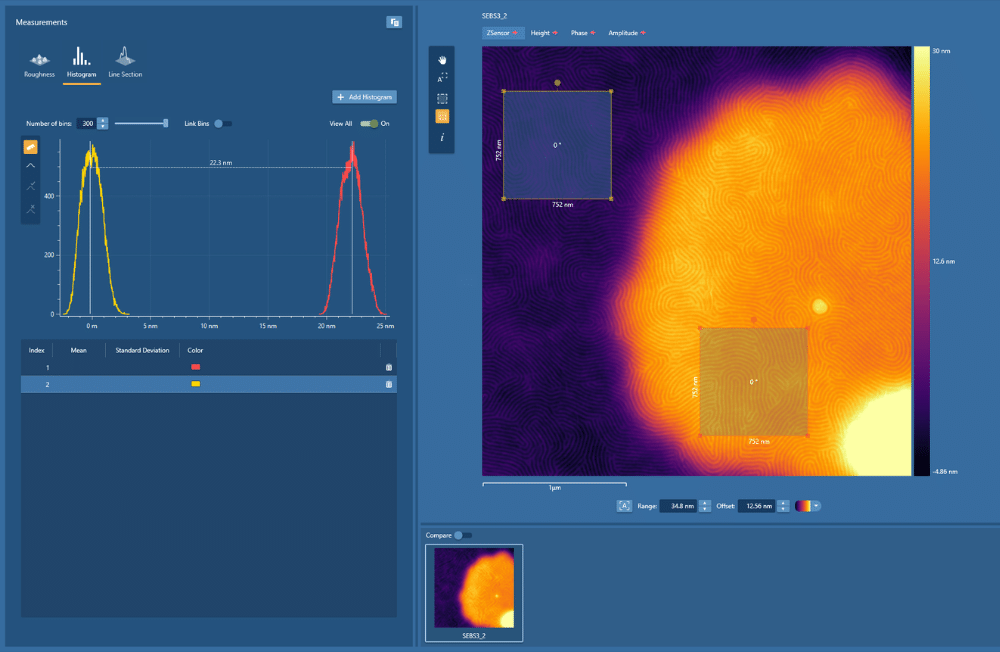

Easily Analyze and Present AFM Images

AFM images can be analyzed directly in Ergo without the need for other software. A workflow guides the user to sort, process, and analyze AFM data. Results are stored directly with the images so they cannot be lost, and the raw data is never altered.

Advanced Mode Operation

Ergo works in concert with Asylum’s IGOR Pro-based software that is supplied with every system. Expert users have the ability to operate the complete range of advanced modes and exercise the full customization capabilities of the AFM. Together, Ergo and Igor provide users with unmatched flexibility to achieve all of their research goals.

DOWNLOAD THE BROCHURE
